Threading and Chamfering Products
GROOVE 'N TURN®
Insertable Threading Tools
GROOVE 'N TURN®
Insertable ACME Threading Tools
MINI GROOVE 'N TURN®
Insertable Internal Threading Tools
DeepGroove®
Insertable External Threading Tools
MICROBIT®
Solid Carbide Threading Tools
MICROBIT®
Solid Carbide ACME Threading Tools
LITTLEBIT®
Insertable Threading Tools
GROOVE 'N TURN®
Insertable Chamfering Tools
Deepgroove®
Insertable External Chamfering Tools

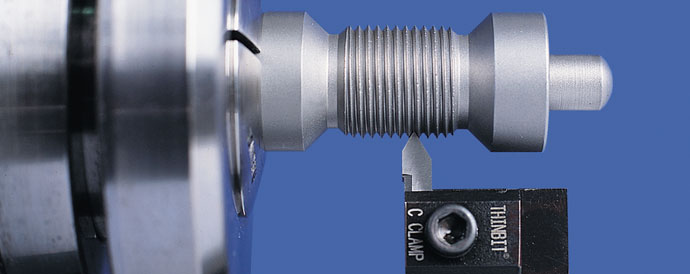

GROOVE 'N TURN®
Insertable Threading Tools
Shown: Right hand Insert & Toolholder
- 60° profile for external and internal threading.
- 8 Threads Per Inch and greater.
- Sharp corner or .002" nose radius for internal diameters of 1.250" and larger.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including top rakes, chip breakers, clearance angles and custom forms can be provided.

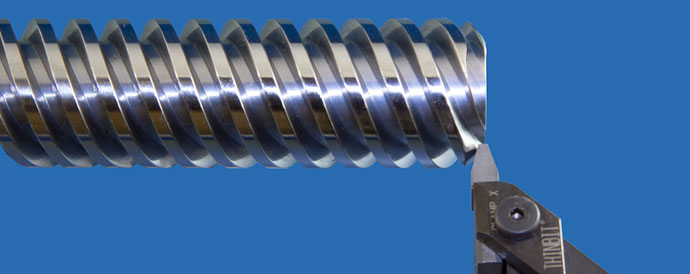

GROOVE 'N TURN®
Insertable ACME Threading Tools
Shown: Right hand Insert and Toolholder
- ACME profile for external and internal threading.
- 4 Threads Per Inch and greater.
- For internal diameters of 1.250" and larger.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including top rakes, chip breakers, clearance angles and custom forms can be provided.

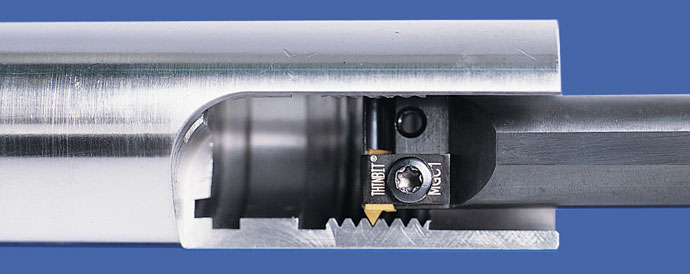

MINI GROOVE 'N TURN®
Insertable Internal Threading Tools
Shown: Right hand Toolholder with Left hand Insert
- 60° profile for internal threading.
- 9 Threads Per Inch and greater.
- Sharp corner or .002" nose radius.
- For internal diameters of .325" and larger.
- Toolholder shank sizes of 1/4", 3/8", 1/2" and 5/8" in steel, heavy metal, or carbide.
- Geometries including top rakes, chip breakers, clearance angles and custom forms can be provided.

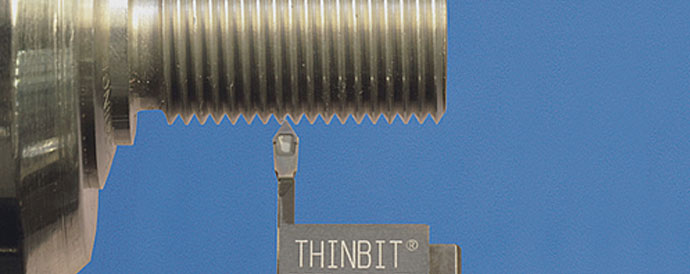

DeepGroove®
Insertable External Threading Tools
Shown: Package 'F' 3mm insert
- 3mm insert, 60° profile for external threading.
- 6 threads per inch and greater.
- Recessed pocket and raised edge for chip control.
- Toolholder shank sizes 3/4", 1", 16mm, 20mm and 25mm in straight and 90° orientations.
- Round toolholders in 3/4" and 1".
- Geometries including top rakes, chip breakers, clearance angles and custom forms can be provided.
MICROBIT®
Solid Carbide Threading Tools
Shown: Right hand
- 60° profile for internal threading.
- 4 Threads Per Inch and greater.
- Sharp corner or .002" nose radius.
- For internal diameters of .077" and larger.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameters.
- Elliptically ground necks for greater strength; round necks to fit into smaller diameters.
- Geometries including top rakes, chip breakers, clearance angles and custom forms can be provided.

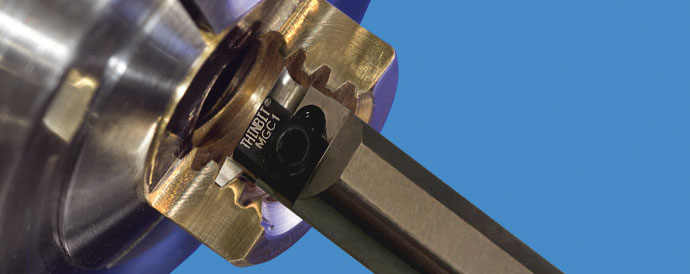

MICROBIT®
Solid Carbide ACME Threading Tools
Shown: Right hand
- ACME profile for internal threading.
- 6 Threads Per Inch and greater.
- For internal diameters of .187" and larger.
- Solid carbide shanks in 3/16", 1/4", 5/16", 3/8" and 1/2" diameters.
- Elliptically ground necks for greater strength; round necks to fit into smaller diameters.
- Geometries including top rakes, chip breakers, clearance angles and custom forms can be provided.

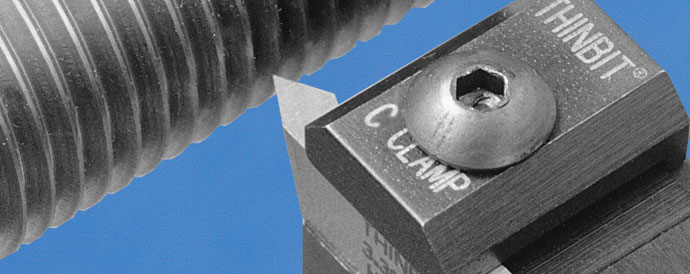

LITTLEBIT®
Insertable Threading Tools
Shown: Insert in Right hand Toolholder
- 60° profile for external and internal threading.
- 8 Threads Per Inch and greater.
- Sharp corner or .002" nose radius.
- For internal diameters of 1.125" and larger.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including top rakes, chip breakers, clearance angles and custom forms can be provided.

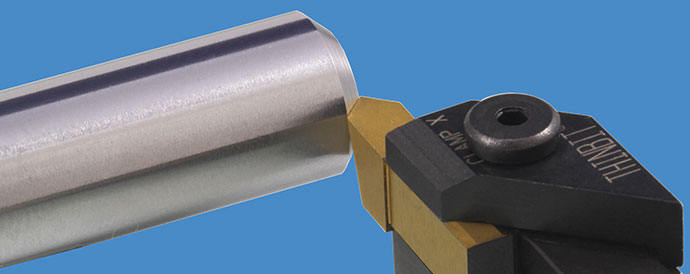

GROOVE 'N TURN®
Insertable Chamfering Tools
Shown: Right Hand Toolholder
- 45° profile for internal or external chamfering.
- Chamfering within .090" of a shoulder.
- For internal diameters of 1.250" and larger.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including top rakes, chip breakers, clearance angles and custom forms can be provided.
DEEPGROOVE®
Insertable External Chamfering Tools
Shown: 3mm insert, 90° profile
- 3mm insert, 90° profile for external chamfering.
- Recessed pocket and raised edge for chip control.
- Toolholder shank sizes 3/4", 1", 16mm, 20mm and 25mm in straight and 90° orientations. Round toolholders in 3/4" and 1".
- Geometries including top rakes, chip breakers, clearance angles and custom forms can be provided.
