Parting Products
GROOVE 'N TURN®
Insertable Parting Inserts
LITTLEBIT®
Insertable Parting Inserts
DEEPGROOVE®
Insertable Support Blade Parting Inserts
GROOVE 'N TURN®
Insertable Parting Inserts

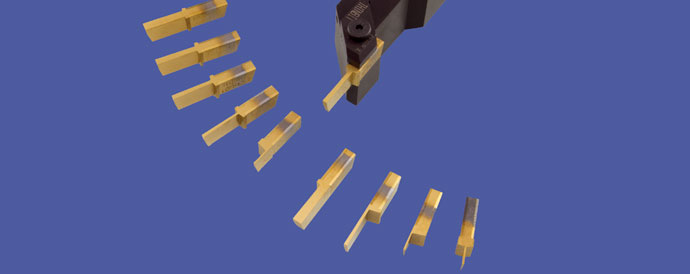

Shown: Various Parting Tools
- For diameters 1" and smaller.
- Parting widths .025", .045", .062", .085" and .115".
- Left hand, Right hand and Centered insert styles with or without 7° lead angle.
- Narrow widths reduce material loss and part deflection.
- Perfect for thin wall tubing, precious metals and small diameter parts.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
LITTLEBIT®
Insertable Parting Inserts
Shown: Insert in Right Hand Toolholder
- For diameters 1" and smaller.
- Parting widths .025", .045", .062", .085", .115".
- Narrow widths reduce material loss and part deflection.
- Perfect for thin wall tubing, precious metals and small diameter parts.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.

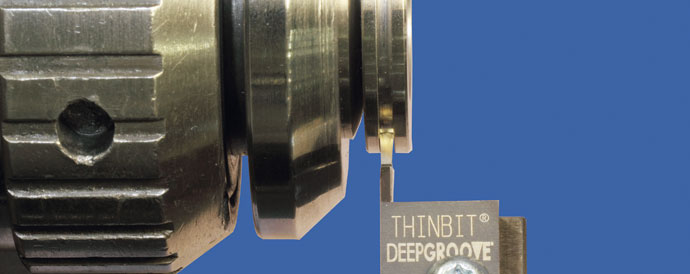

DEEPGROOVE®
Insertable Support Blade Parting Inserts
Shown: Package "F" 2mm Parting Insert
- For diameters 2" and smaller.
- Parting widths 2, 3, 4, 5 and 6mm.
- Typically used for CNC machining and large diameter parts.
- Recessed pocket and raised edge for chip control.
- Inserts can also be used for grooving and face grooving.
- Toolholder shank sizes 3/4", 1", 16mm, 20mm & 25mm in straight and 90° orientations. Round toolholders in 3/4", 1", 20mm & 25mm.
