Face Grooving Products
GROOVE 'N TURN®
Insertable Face Grooving Tools
GROOVE 'N TURN®
Insertable Angled Face Grooving Tools
GROOVE 'N TURN®
Insertable Dovetail Face Grooving Tools
GROOVE 'N TURN®
Insertable Static O-Ring Face Grooving Tools
Mini GROOVE 'N TURN®
Insertable Internal Face Grooving Tools
MICROBIT®
Solid Carbide Internal Face Grooving Tools
DeepGroove®
Support Blade Style Internal Face Grooving Tools

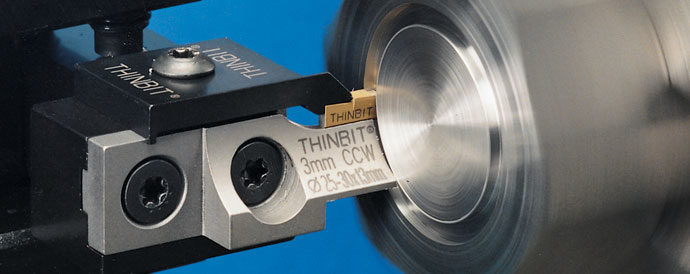

DeepGroove®
Support Blade Style External Face Grooving Tools

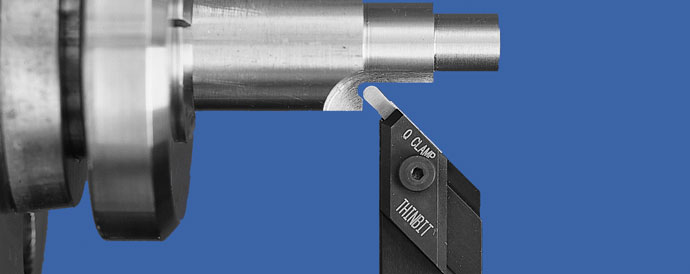

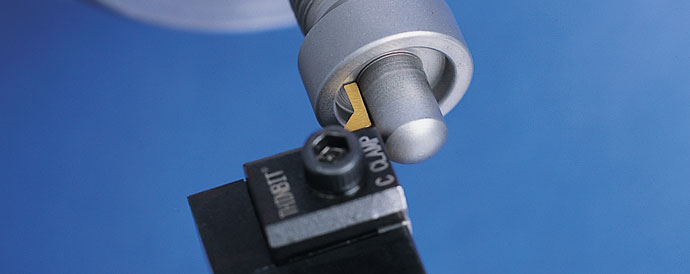

GROOVE 'N TURN®
Insertable Face Grooving Tools
Shown: Left Hand, Counter-Clockwise Insert in Left Hand, Straight Toolholder
- Major diameters of .300", .750", 1.250" and 3".
- For Depths of Cut 2-1/2 to 3 times groove width.
- Groove widths .004" - .150" in .001" increments.
- Inserts can groove, turn/bore and generate profiles.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
GROOVE 'N TURN®
Insertable Angled Face Grooving Tools
Shown: Left Hand, Counter-Clockwise Insert in Right Hand 45° Toolholder
- Major diameters of .300", .750", 1.250" and 3".
- For Depths of Cut 2-1/2 to 3 times groove width.
- Groove widths .004" - .150" in .001" increments.
- Groove widths less than .080" may require a special insert.
- Inserts can groove, turn/bore and generate profiles.
- 30°, 60° and 45° angles.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.

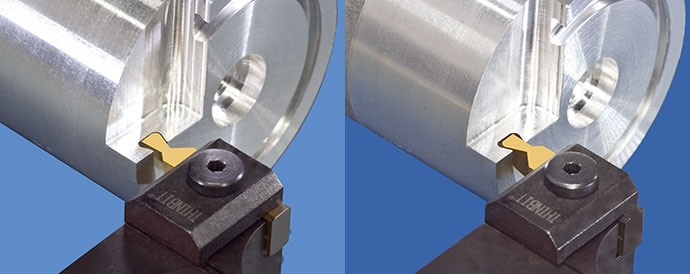

GROOVE 'N TURN®
Insertable Dovetail Face Grooving Tools
Shown: Style 5 (ID) insert in Right Hand, 90°
Style 6 (ID) insert in Left Hand, 90°
- For dovetail o-ring grooves.
- Groove widths .030", .050", .060", .070", .080", .090", .100", .125" and .150".
- Back clearance 24° (66° undercut).
- Major diameters of .300", .500", 1", 1.500", 2", and 3".
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.

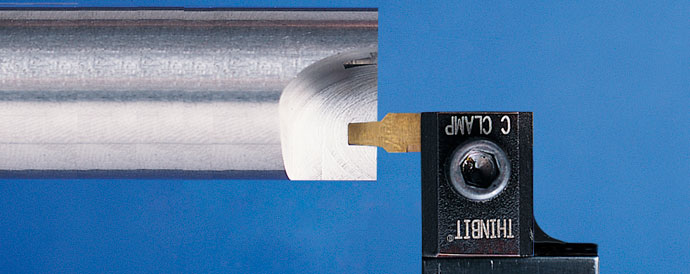

GROOVE 'N TURN®
Insertable Static O-Ring Face Grooving Tools
Shown: Counter-Clockwise Insert in Right Hand, 90° Toolholder
- Major diameters of .300" and .750".
- For internal diameters of 1.250" and larger.
- For Depths of Cut to .250".
- Groove widths .086", .103", .122", .125" and .138".
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.

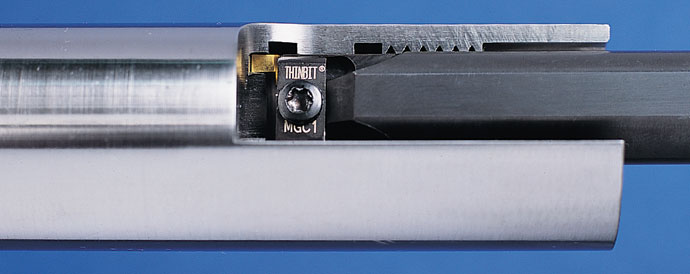

Mini GROOVE 'N TURN®
Insertable Internal Face Grooving Tools
Shown: Left Hand Insert in Right Hand Toolholder
- For internal diameters of .415" and larger
- For Depths of Cut up to .125"
- Groove widths .004" - .125" in .001" increments.
- Inserts can groove, bore and generate profiles.
- Inserts can also be used for OD/ID grooving.
- Toolholder shank sizes of 3/8", 1/2" and 5/8" in steel, heavy metal or carbide.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.

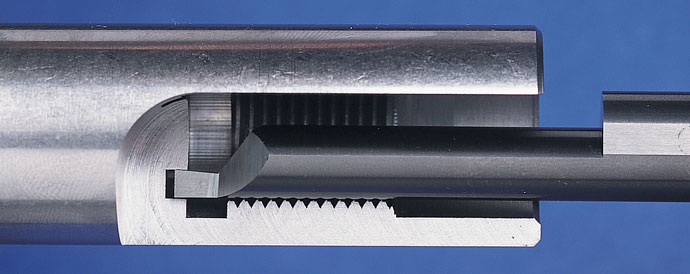

MICROBIT®
Solid Carbide Internal Face Grooving Tools
Shown: Counter-Clockwise Face Grooving Tool
- For internal diameters of .125" and larger.
- Depths of Cut up to .250".
- Groove widths .004" - .250" in .001" increments.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameter.
- Elliptically ground necks for greater strength.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.

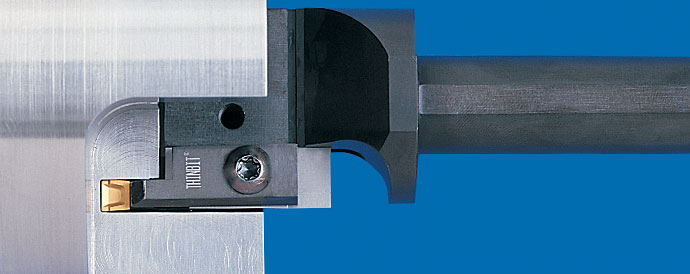

DeepGroove®
Support Blade Style Internal Face Grooving Tools
Shown: Insert in Right Hand Toolholder
- For internal diameters of 1.574" and larger.
- For Depths of Cut up to 1".
- Round toolholders in 3/4", 1", 20 mm and 25mm.
- Groove widths 2, 3, 4, 5 and 6mm.
- Recessed pocket and raised edge for chip control inserts can also be used for parting and OD/ID grooving.
- Geometries including radii, lead angles, top rakes, clearance angles and custom forms can be provided.
DeepGroove®
Support Blade Style External Face Grooving Tools
Shown: Package 'D' Right hand, 90° Shank, Counter-Clockwise
- For Depths of Cut to 1".
- Groove widths 2, 3, 4, 5 and 6mm.
- Major diameters starting from .787".
- Recessed pocket and raised edge for chip control.
- Inserts can also be used for parting and OD/ID grooving.
- CNC, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including radii, lead angles, top rakes, clearance angles and custom forms can be provided.
