MICROBIT®
Solid Carbide Internal Grooving Tools
Shown: Right Hand Tool
- For internal diameters of .125" and larger.
- Depths of Cut up to .150".
- Groove widths .004"-.250" in .001" increments.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameter.
- Elliptically ground necks for greater strength.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
MICROBIT®
Solid Carbide Internal Face Grooving Tools
Shown: Counter-Clockwise Face Grooving Tool
- For internal diameters of .125" and larger.
- Depths of Cut up to .250".
- Groove widths .004" - .250" in .001" increments.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameter.
- Elliptically ground necks for greater strength.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
MICROBIT®

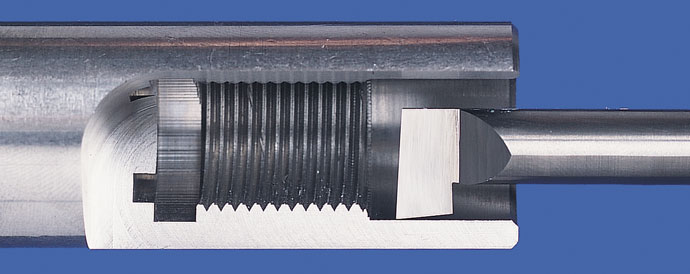

Solid Carbide Boring Tools
Shown: Right hand
- Finish boring.
- For internal diameters of .073" and larger.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameters.
- Elliptically ground necks for greater strength; round necks to fit into smaller diameters.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
MICROBIT®

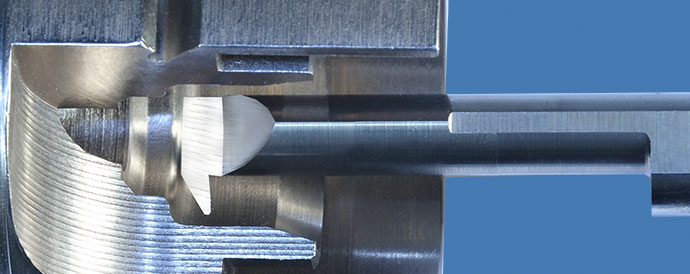

Solid Carbide Reverse Profiling Tools
Shown: Right hand Reverse Profiling Tool
- Reverse Profiling tools are designed for feeding out of the bore.
- For internal diameters of .125" and larger.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameters.
- Elliptically ground necks for greater strength.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
MICROBIT®

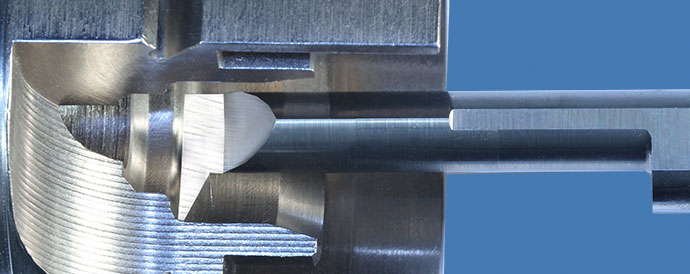

Solid Carbide Profiling Tools
Shown: Shown: Right hand
- Profiling tools are designed for feeding out of the bore.
- For internal diameters of .125" and larger.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameters.
- Elliptically ground necks for greater strength.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
MICROBIT®

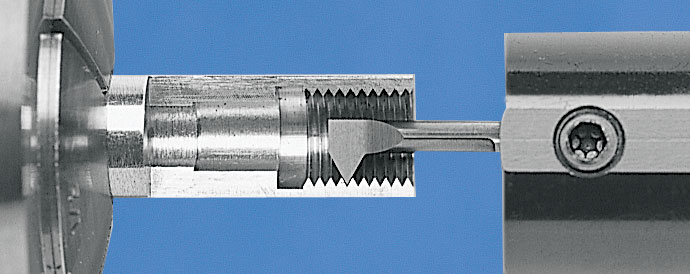

Solid Carbide Threading Tools
Shown: Right hand
- 60° profile for internal threading.
- 4 Threads Per Inch and greater.
- Sharp corner or .002" nose radius.
- For internal diameters of .077" and larger.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameters.
- Elliptically ground necks for greater strength; round necks to fit into smaller diameters.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
MICROBIT®

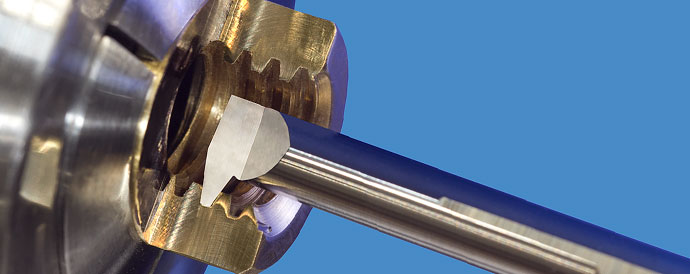

Solid Carbide ACME Threading Tools
Shown: Right hand
- ACME profile for internal threading.
- 6 Threads Per Inch and greater.
- For internal diameters of .187" and larger.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16" and 3/8" diameters.
- Elliptically ground necks for greater strength; round necks to fit into smaller diameters.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
