Grooving Products
GROOVE 'N TURN®
Insertable External/Internal Grooving Tools
GROOVE 'N TURN®
Static O-Ring Grooving Tools
Littlebit®
Insertable External/Internal Grooving Tools
Microbit®
Solid Carbide Internal Grooving Tools
Mini GROOVE 'N TURN®
Insertable Internal Grooving Tools
DeepGroove®
Support Blade Style Internal Grooving Tools
DeepGroove®
Support Blade Style External Grooving Tools
FORM-A-GROOVE®
External Form Tools
FORM-A-GROOVE®
Internal Form Tools
GROOVE 'N TURN®
Insertable External/Internal Grooving Tools

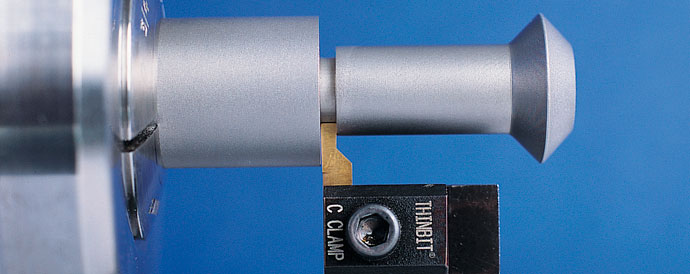

Shown: Right Hand Insert in Right Hand Toolholder
- For internal diameters of 1.250" and larger.
- For Depths of Cut 2-1/2 to 3 times groove width.
- Groove widths .004" - .150" in .001" increments.
- Inserts can groove, turn/bore and generate profiles.
- Inserts can also be used for face grooving.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
GROOVE 'N TURN®
Static O-Ring Grooving Tools

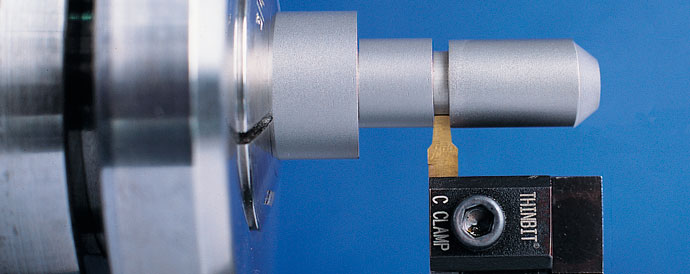

Shown: Static O-Ring Insert in Right Hand Toolholder
- For static o-ring grooves.
- For internal diameters of 1.250" and larger.
- Groove widths .095", .125" and .142".
- Included Angle 7°, .010" and .020" Radius.
- CNC, Swiss, Conventional and Round toolholders of various sizes and orientations available.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
LITTLEBIT®
Insertable External/Internal Grooving Tools

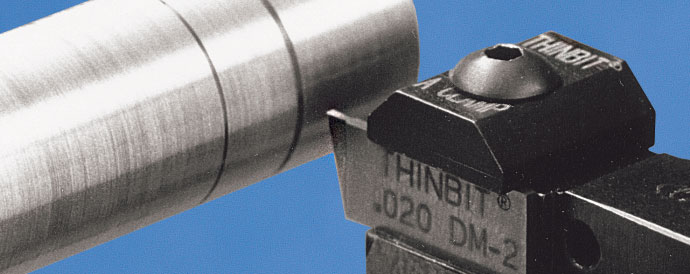

Shown: Insert in Right Hand Toolholder
- For internal diameters of 1.250" and larger.
- For Depths of Cut 1-1/2 to 3 times groove width.
- Groove widths .004" - .125" in .001" increments.
- Cuts to within 1/16" of shoulder. To work against a shoulder, see GROOVE 'N TURN® grooving tools.
- CNC, Swiss, Conventional and round toolholders of various sizes and orientations available.
MICROBIT®
Solid Carbide Internal Grooving Tools

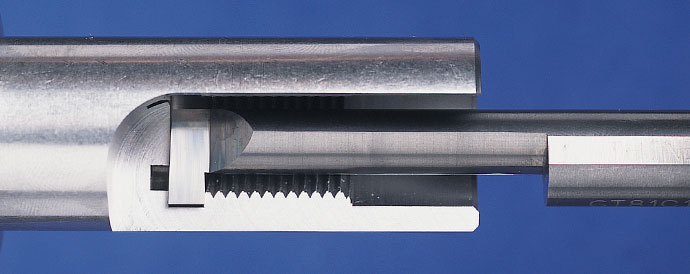

Shown: Right Hand Tool
- For internal diameters of .125" and larger.
- Depths of Cut up to .150".
- Groove widths .004"-.250" in .001" increments.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameter.
- Elliptically ground necks for greater strength.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
MINI GROOVE 'N TURN®
Insertable Internal Grooving Tools
Shown: Left Hand Insert in Right Hand Toolholder
- For internal diameters of .325" and larger.
- For Depths of Cut up to .125".
- Groove widths .004" - .125" in .001" increments.
- Inserts can groove, bore and generate profiles.
- Inserts can be used for OD/ID grooving.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
- Toolholder shank sizes of 1/4", 3/8", 1/2" and 5/8" in steel, heavy metal or carbide.
DEEPGROOVE®
Support Blade Style Internal Grooving Tools

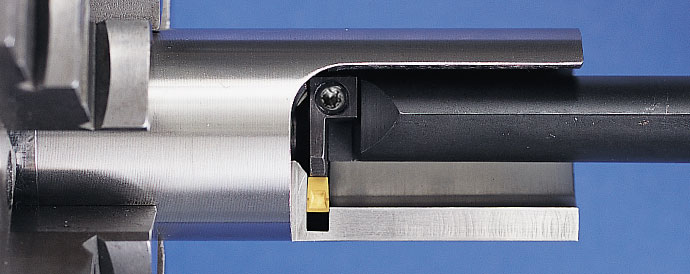

Shown: Insert in Right Hand Toolholder
- For internal diameters of 1.00" and larger.
- Elliptical neck designed for maximum rigidity.
- For depths of cut up to .500".
- Groove widths 2, 3 and 4mm.
- Recessed pocket and raised edge for chip control.
- Geometries including lead angles, top rakes, and custom forms can be provided.
- Toolholder shank sizes of 3/4" and 1".
GROOVE 'N TURN®
Support Blade Style External Grooving Tools

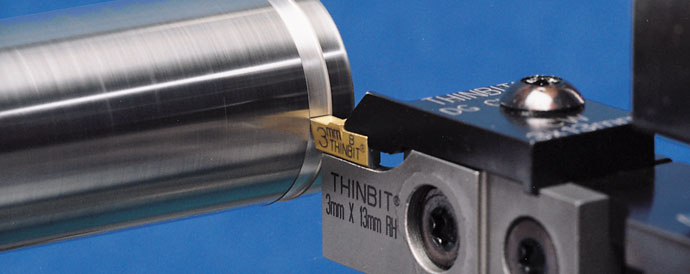

Shown: Package 'F' Right hand, Straight shank
- For Depths of Cut to 1".
- Groove widths 2, 3, 4, 5 and 6mm.
- Recessed pocket and raised edge for chip control.
- Inserts can also be used for parting and face grooving.
- Geometries including lead angles, top rakes, and custom forms can be provided.
- Toolholder shank sizes 3/4", 1", 16mm, 20mm and 25mm in straight and 90° orientations. Round toolholders in 3/4", 1", 20mm and 25mm.
FORM-A-GROOVE®
External Insert Form Tools
Shown: External Stackable Multi-Insert Grooving
- Used for generating multiple groove forms simultaneously.
- Individual inserts and spacers are stacked to create the form. This design allows more flexibility to replace a single insert when it is dull.
- Larger solid blocks of material can be used for larger forms and allow for faster change over.
- Form tools simplify programming, decrease cycle time and reduce tooling.
- Send your print and an experienced application engineer will design a custom form tool for your application.
- Fast delivery: most orders ship within 2 weeks.
- Order quantities from 5 pieces to 100 or more.
FORM-A-GROOVE®
Internal Form Tools

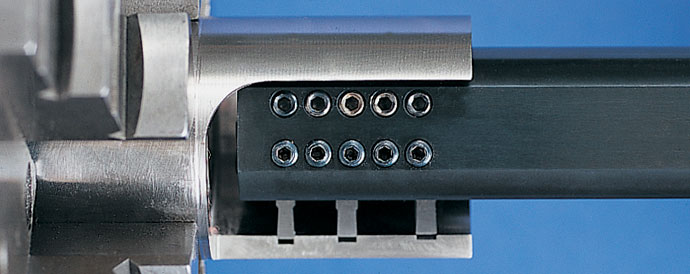

Shown: Internal Form Tool Grooving
- Used for generating multiple groove forms simultaneously.
- Forms can consist of combinations of grooves, arcs, angles, convex and concave radii.
- Individual inserts and spacers are stacked to create the form. This design allows more flexibility to replace a single insert when it is dull.
- Internal applications up to 1" wide, with a 1.125" minimum bore.
- Larger solid blocks of material can be used for larger forms and allow for faster change over.
- Form tools simplify programming, decrease cycle time and reduce tooling.
- Send your print and an experienced application engineer will design a custom form tool for your application.
- Fast delivery: most orders ship within 2 weeks.
- Order quantities from 5 pieces to 100 or more.
