Milling Products
MILL A GROOVE™
Insertable External Milling Tools

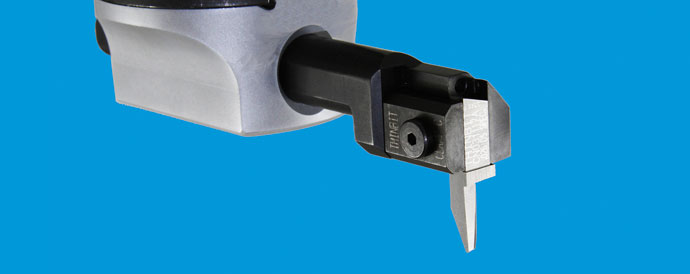

Shown: Left Hand Insert in Toolholder
- Major diameters of .300", .750", 1.250" and 3".
- For Depths of Cut 2-1/2 to 3 times groove width.
- Groove widths .004" - .150" in .001" increments.
- Advantages are better sealing surfaces, groove diameters concentric to spindle rotation, lower cost per groove and increased strength.
- Single point face milling
- Round toolholders of various sizes and orientations available.
- Geometries including radii, lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.
MILL A GROOVE™
Insertable External Milling Tools

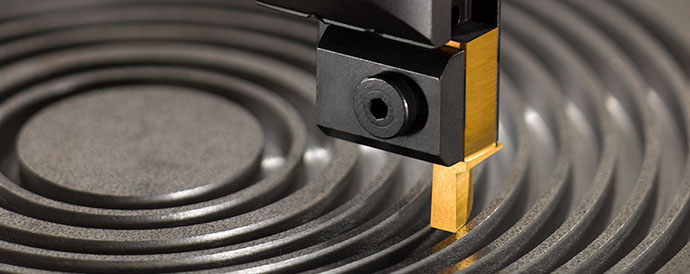

Shown: Insert in Right Hand Toolholder
- Designed for trepanning on CNC machines.
- Enables machining groove diameters that
are concentric to the spindle rotation, not the table
movement. - Eliminates secondary lathe operations for face
grooving. - Groove can be symmetrical or asymmetrical.
- One insert can make convex and concave radius
grooves, chamfered edges, angles and
special profiles.
