Boring Products
microbit®
Solid Carbide Boring Tools
miNI-bore®
Indexable Boring Tools
miNI-bore® trigon®
Indexable Boring Tools
MICROBIT®
Solid Carbide Boring Tools
- Finish boring.
- For internal diameters of .073" and larger.
- Solid carbide shanks in 1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" diameters.
- Elliptically ground necks for greater strength; round necks to fit into smaller diameters.
- Geometries including lead angles, top rakes, chip breakers, clearance angles and custom forms can be provided.

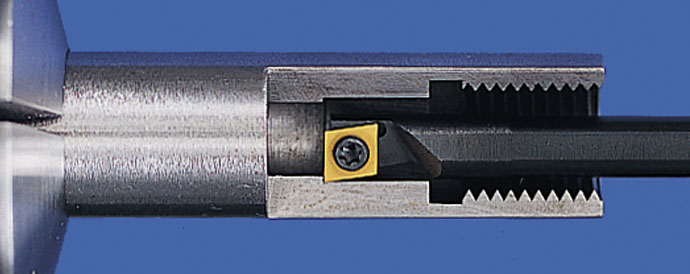

MINI-BORE®
Indexable Boring Tools
- Finish boring.
- Negative cutting rake, 'K' angle, increases strength in insert pocket by increasing the cross-sectional area below the insert.
- .165" Minimum Bore; MBZ style.
- .180" Minimum Bore; MBA (CD) .156" I.C. style.
- .270" Minimum Bore; MBB (TD) .160" I.C. style.
- .430" Minimum Bore; MBC (TP) .250" I.C. style.
- .002", .007", .015" and .031" corner radius.
- Flat, molded and ground chipbreakers.
- Toolholders available in a variety of diameters in Steel, Heavy Metal and Carbide.
- Bars and inserts are compatible with other ANSI standard bars and inserts. Call for cross-overs.

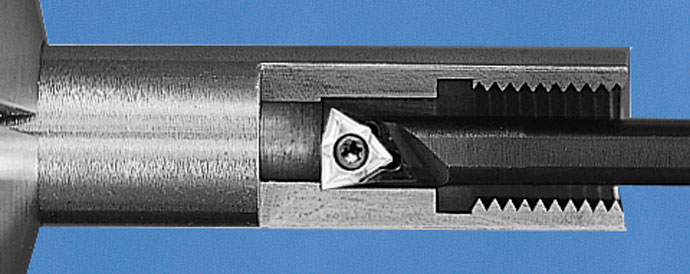

MINI-BORE® TRIGON®
Indexable Boring Tools
- Rough boring using Trigon inserts.
- Negative cutting rake, 'K' angle, increases strength in insert pocket by increasing the cross-sectional area below the insert.
- .210" Minimum Bore; MBE (WCGT) .156" I.C. style.
- .270" Minimum Bore; MBF (WCGT) .187" I.C. style.
- .410" Minimum Bore; MBG (WCGT) .250" I.C. style.
- .004", .008" and .015" corner radius.
- Toolholders available in a variety of diameters in Steel, Heavy Metal and Carbide.
- Bars and inserts are compatible with other ANSI standard bars and inserts. Call for cross-overs.
